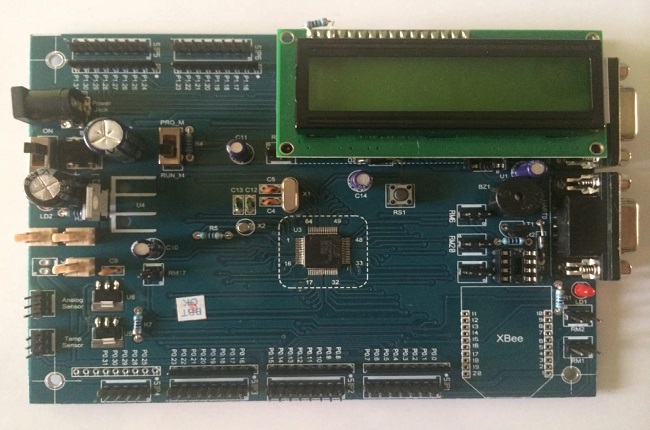

MYARM7 Development Boards
MYARM7 is the evolution board for the LPC2148.LPC2148 is 16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package has 64 pins, on chip SRAM of 32kB. USB RAM of 2 kB, On-chip FLASH of 512kB, has 14no 10-bit ADC channels and 1 no 10-bit DAC channels.
The development board features
1.Input 12v DC 2.IO port pins are divided into 8 bit pin out mode as a easy connect 3.On board 3 –led’s, 2- button’s, buzzer. 4.Two serial ports with DB9 female connectors. 5.SD/MMC connector. 6.USB connector. 7.Two analog inputs POT and TEMPERATURE Sensor. 8.Built-in RTC has battery backup option. 9.line x16 char LCD with backlight control and POT for contrast 10.All built in peripherals’ are configured with jumpers.

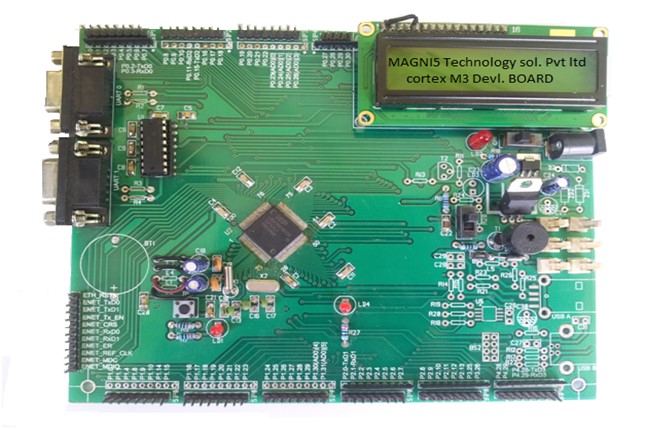

CORTEX-M3 Development Boards
The Keil LPC1768 Evaluation Board allows you to quickly and easily evaluate the LPC176x family of microcontrollers.
The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M3 project.
Populated with the LPC1768 to demonstrate LPC176x features,
the LPC1768 board allows the evaluation of the high level integration and low power consumption of the LPC1768.
Development Board Features
Up to 120 MHz operation
Wakeup interrupt controller for automatic wake from any priority interrupt
Memory protection unit
Power consumption in active mode: 420 μA/MHz
Four reduced-power modes: Sleep (2 mA), Deep sleep (240 μA), Power-down (31 μA), Deep power-down (630 nA)
Memories
Up to 512 KB Flash memory
Up to 64 KB SRAM
Serial peripherals
12 Mbps USB 2.0 device/host/OTG controller with on-chip PHY
Four UARTs with fractional baud rate generation, RS-485 modem control I/O, and IrDA
Two CAN 2.0B controllers
Three SSP/SPI controllers
Three I2C-bus interfaces with one supporting Fast-mode plus (1 Mbit/s data rates)
I2S interface for digital audio
Analog peripherals
12-bit ADC with eight channels
10-bit DAC

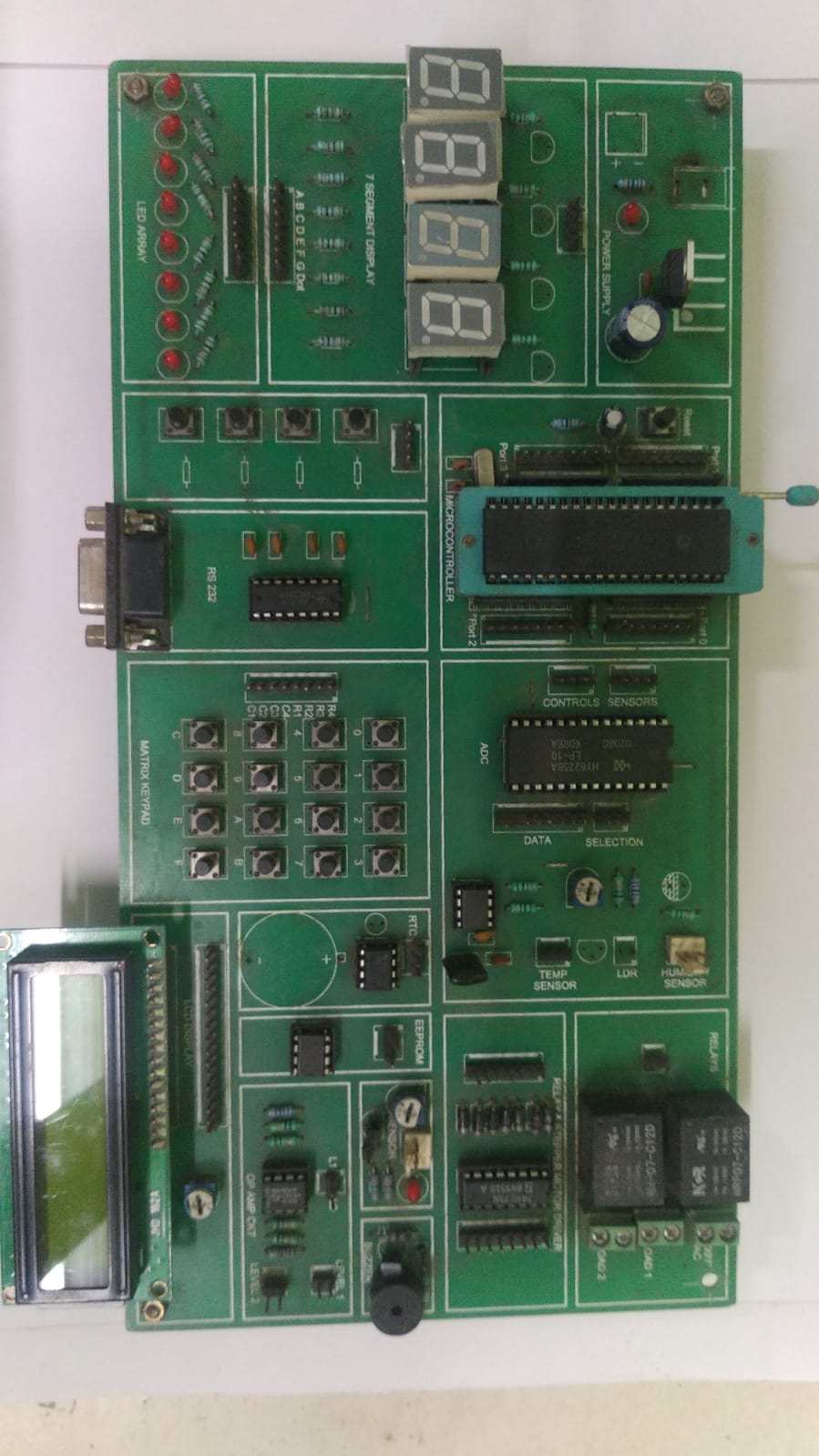

8051 Development Board
The AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory pro-grammer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller, which provides a highly flexible and cost-effective solution to many, embedded control applications.
